Safeguarding service, eliminating downtime

High-tech composite trench covers for high-tech facilities

To ensure continuous, uninterrupted operation, data centers centres are constructed with the highest performance, highest quality building materials available, with every part of a facility meticulously planned. Fibrelite’s lightweight modular FRP GRP composite trench access covers are specified globally for new build data center centre projects by the world’s largest technology brands to protect and provide easy access to underground infrastructure such as electrical and fiberoptic fibreoptic cabling.

Simple, safe underground infrastructure access

Fibrelite GRP composite trench and manhole covers are designed for safe manual removal using Fibrelite’s ergonomically designed lifting handles, even when heavier load ratings are required (e.g. trench installed in roadway crossings with vehicle and truck traffic). Fibrelite can manufacture composite trench covers at all load ratings up to heavy truck trafficking D400 (40 tonne). Higher load ratings are also available if required.

Fibrelite FRP composite trench and manhole covers are designed for safe manual removal using Fibrelite’s ergonomically designed lifting handles, even when heavier load ratings are required (e.g. trench installed in roadway crossings with vehicle and truck traffic). Fibrelite can manufacture H20/HS20 40K load rated covers for road crossings (higher load ratings available upon request).

Custom-made to specification

Fibrelite’s line of composite trench covers can be made to fit nearly any trench size and can be provided with locking capabilities. If required, Fibrelite can also provide Class I/Class A fire rated covers for indoor trench applications.

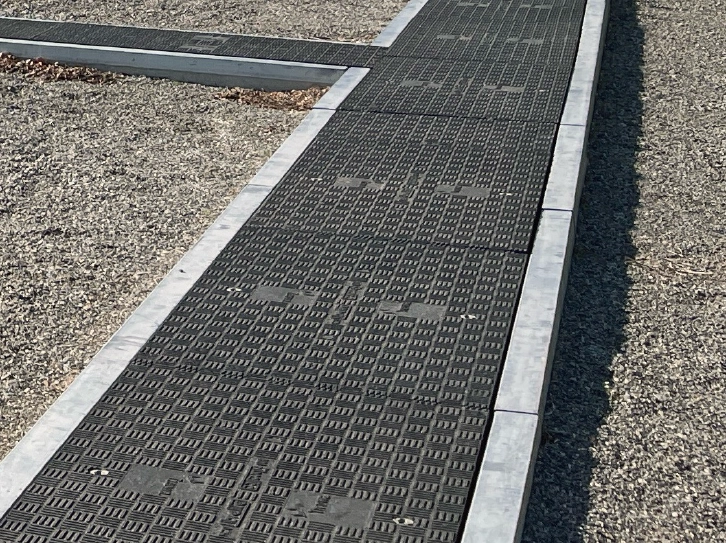

Precast Trench with Fibrelite Covers
Trenwa Precast Trench with Fibrelite Covers

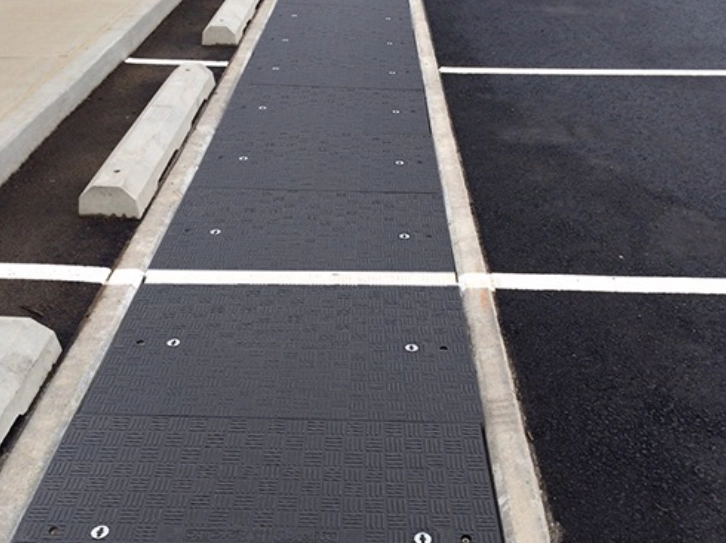

Cast in Place Trench with Fibrelite Covers

From concept to installation

Download our NEW trench & trench cover design guide - CLICK HERE

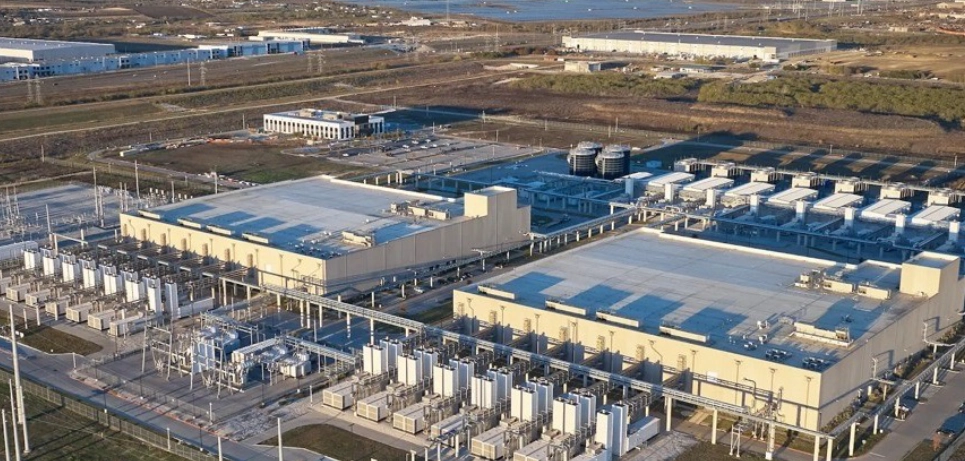

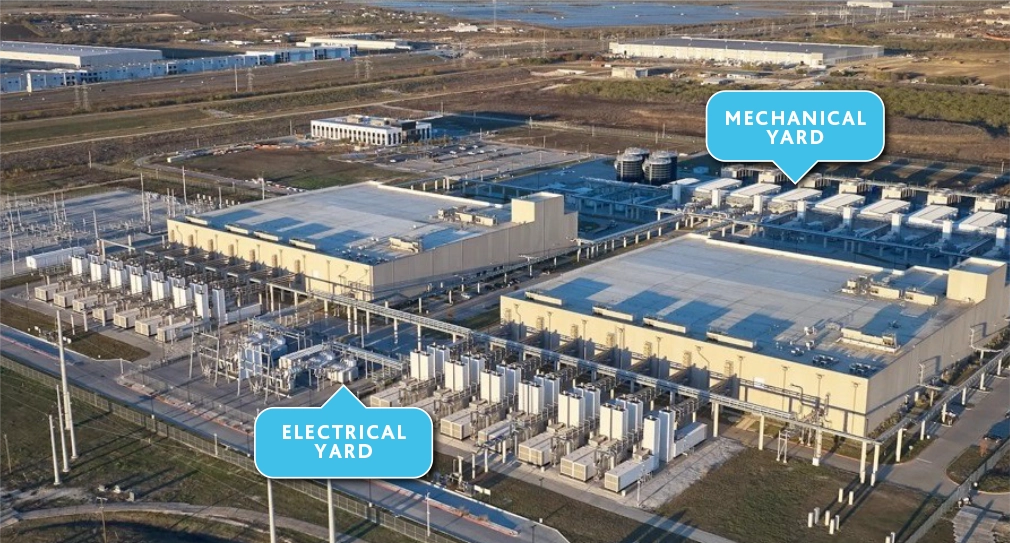

Where are Fibrelite Trench Covers typically installed at Data Centres?

Data centres are installed next to giant substations connected to the electrical grid.
Long electrical trenches run from the substation to:

  1. The Electrical Yard where AC power is converted to DC
    for the data centre servers; and…
  2. To the Mechanical Yard where giant cooling towers are
    installed which cool the servers

Fibrelite can provide composite trench covers from A15 (1.5 tonne) Load Rated all the way up to D400 (40 tonne) Load Rated trench covers for trenches installed in roadways (higher load ratings also available if required).

Where are Fibrelite Trench Covers typically installed at Data Centers?

Data centers are installed next to giant substations connected to the electrical grid. Long electrical trenches run from the substation to:

  1. The Electrical Yard where AC power is converted to DC for the data center servers; and…
  2. To the Mechanical Yard where giant cooling towers are installed which cool the servers

Fibrelite can provide composite trench covers from Pedestrian Loading up to H20/HS20 40K Load Rated trench covers for trenches installed in roadways (higher load ratings available upon request).

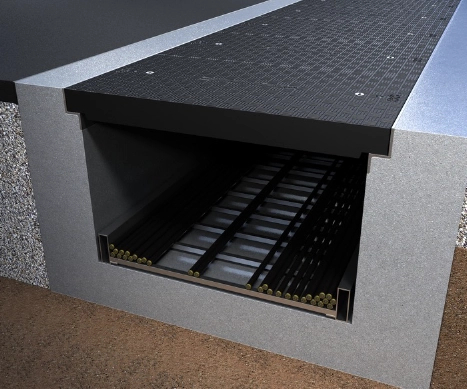

TYPE 1 - Single Trench

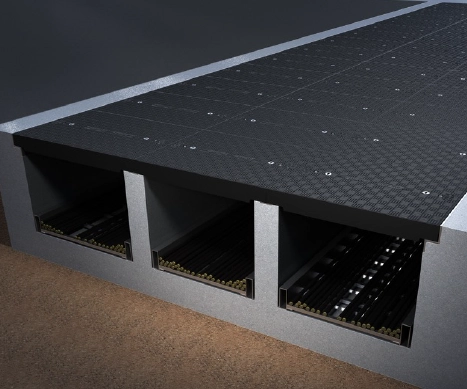

TYPE 2 - Triple Trench

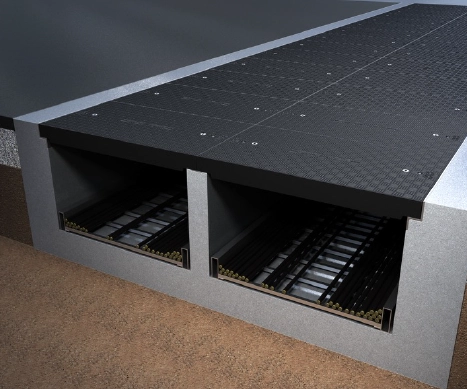

TYPE 3 - Double Trench

Data centres - electrical trench sizes

Fibrelite trench covers are used on single trench, dual trench and triple trench runs within data centres. We can cover single trench runs up to 1,675 mm / 66” wide and multiple trench runs in most configurations with middle wall supports as shown.

Lightweight GRP composite construction

Manufactured from high performance polymers and engineered to outperform similar products made from concrete and fiberglass fibreglass reinforced concrete materials, these lids are lightweight, yet tough enough to withstand traffic and harsh field conditions.

Data centers - electrical trench sizes

Fibrelite trench covers are used on single trench, dual trench and triple trench runs within data centers. We can cover single trench runs up to 66” wide and multiple trench runs in most configurations with middle wall supports as shown.

Lightweight FRP composite construction

Manufactured from high performance polymers and engineered to outperform similar products made from concrete and fiberglass reinforced concrete materials, these lids are lightweight, yet tough enough to withstand traffic and harsh field conditions.

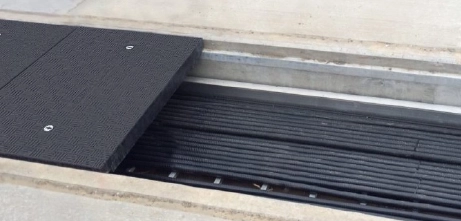

Locking and interlocking trench covers

New ‘interlocking’ trench cover design

Fibrelite provides most data centres with our ‘Locking & Interlocking’ trench covers for
security. The ‘side locking’ covers lock to the sidewall of the trench and the ‘interlocking’
covers lock to the next trench cover.

Locks and restraining bolts

Locks and restraining bolts are available for added security, either a standard head operated by an Allen Key, or a bespoke Tri Head, operated by a dedicated Tri Key.

New product development – GRP trench system

Data centres – electrical trench sizes

Fibrelite has developed a complete modular trench system for use in data centre construction where modular systems are preferred for faster installation and better quality control.

Locking and interlocking trench covers

New ‘interlocking’ trench cover design

Fibrelite provides most data centers with our ‘Locking & Interlocking’ trench covers for security. The ‘side locking’ covers lock to the sidewall of the trench and the ‘interlocking’ covers lock to the next trench cover.

Locks and restraining bolts

Locks and restraining bolts are available for added security, either a standard head operated by an Allen Key, or a bespoke Tri Head, operated by a dedicated Tri Key.

New product development – FRP trench system

Data centers – electrical trench sizes

Fibrelite has developed a complete modular trench system for use in data centre construction where modular systems are preferred for faster installation and better quality control.

The world’s largest range of options

Fibrelite’s composite covers are available in almost any size, colour, shape or configuration, providing a truly bespoke made-to-measure solution for every project.

Available in a range of widths from 300 mm (12”) to 1,000 mm (40”); a range of lengths from 600 mm (24”) to 2,000 mm (78 ¾”) and depths from 50 mm (2”) to 203.2 mm (8”).

Custom sizes are also available up to F900 (90 tonnes).

  • Colours
  • Logos/Symbols
  • Locks and restraining bolts
  • Custom surface finishes
  • Custom hand hole, inspection ports and pipe and cable entries
  • Rain-tight modular trench covers
  • Double trench covers
  • GRP frames
  • Manual/Lift assist handling
  • Specialised frame or existing rebate
  • Frame installation - epoxy system

The world’s largest range of options

Fibrelite’s composite covers are available in almost any size, color, shape or configuration, providing a truly bespoke made-to-measure solution for every project.

Available in a range of widths from 12” to 40”; a range of lengths from 24”to 78 ¾” and depths from 2” to 8”.

Custom sizes are also available up to 202,000 lbs.

  • Colors
  • Logos/Symbols
  • Locks and restraining bolts
  • Custom surface finishes
  • Custom hand hole, inspection ports and pipe and cable entries
  • Rain-tight modular trench covers
  • Double trench covers
  • FRP frames
  • Manual/Lift assist handling
  • Specialized frame or existing rebate
  • Frame installation - epoxy system
